Plaxx

Plaxx®

Plaxx is our registered trademark for the hydrocarbon product produced from End-of-Life Plastic waste. Plaxx can be graded according to customer requirements ranging from light oils to solid waxes.


Technical parameters

Plaxx specifications*

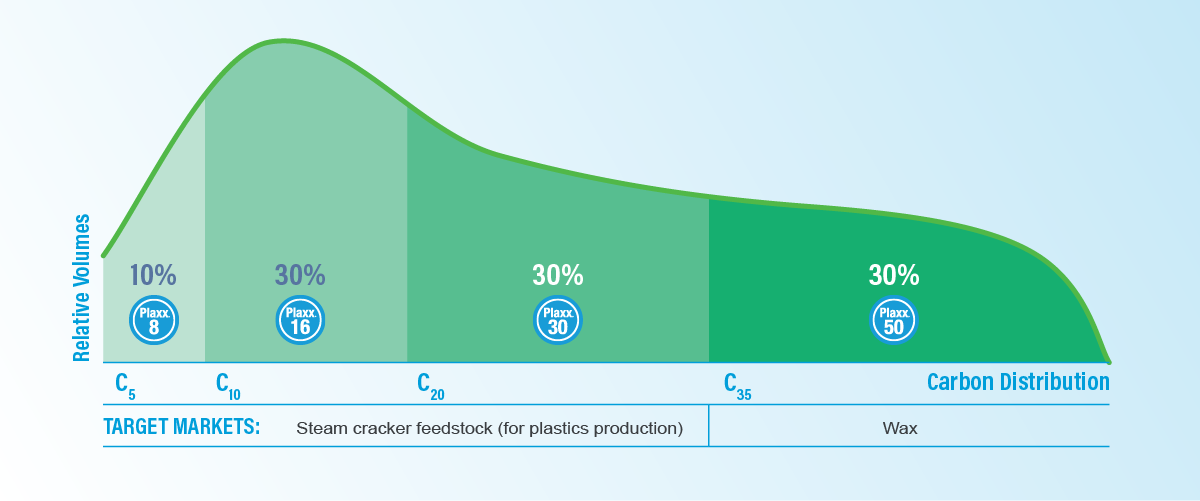

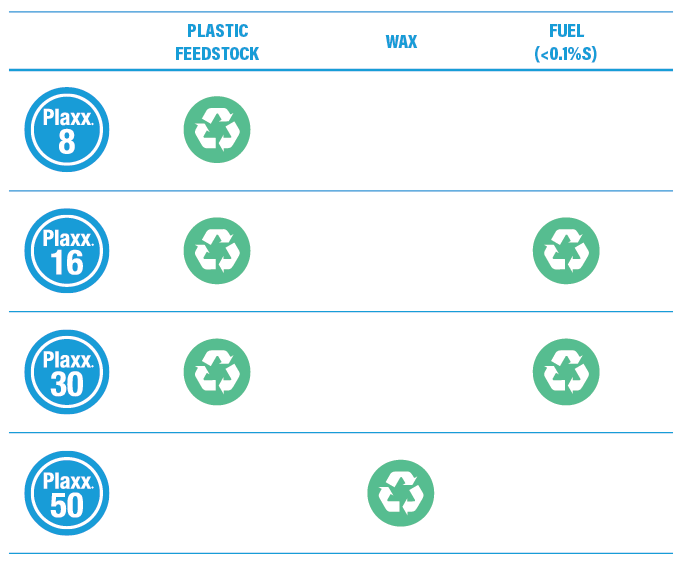

Our patented process combines thermal cracking with intelligent process control, producing a spectrum of products that are classified into three distinct groups.

Plaxx-8 is a highly paraffinic Naphtha equivalent product suitable for polymer manufacturers as feedstock to develop virgin plastics.

Plaxx-16 is a range of ultra clean and low Sulphur fuel oils. They are available in multiple grades for both marine and industrial applications. They are compliant with the 2020 MARPOL1 Sulphur fuel limits and MCPD2 industrial combustion limits.

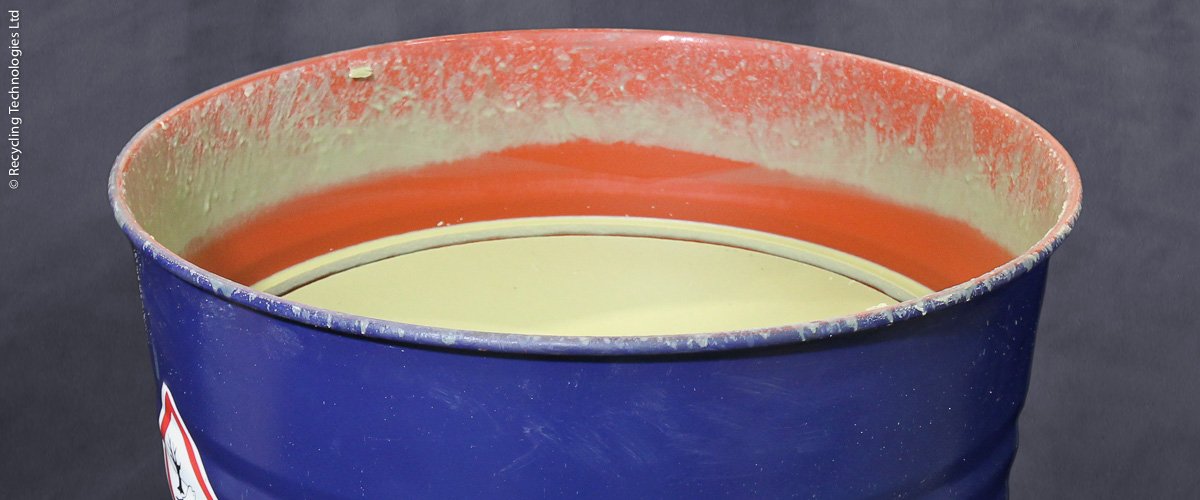

Plaxx-40 is our range of highly paraffinic slack waxes available in three different grades.

1. http://www.imo.org/en/mediacentre/pressbriefings/pages/mepc-70-2020sulphur.aspx
2. http://ec.europa.eu/environment/industry/stationary/mcp.htm

CHARACTERISTIC UNIT VALUE
Colour (max) SAYBOLT
(D1500)
3.0
Density g/cm3 0.8265
Paraffins (min) % 90.0
Olefins (max) % 4.0
Naphthenes + Aromatics % BALANCE
Flash Point °C < 20.0
Kinematic Viscosity at 15 °C cst 335.0
Sulphur (max) ppm 100.0
Lead (max) ppm 10.0
Hydrogen Sulphide [H2S] (max) ppm 5.0
Chlorine (max) ppm 10.0
CHARACTERISTIC UNIT VALUE
Kinematic viscosity* (max) cst 180.0 ISO 3104
Density / Specific Gravity at 15 °C kg/m3 0.8729 ISO 3675
Sulphur Content (max) % (m/m) 0.1 ISO 8754
Flash Point (min) °C 60.0 ISO 2719
Hydrogen Sulphide [H2S] (max) mg/kg < 1.0 IP 570
Acid Number mg KOH/g 0.05 D 664
Total Sediment Aged (max) mass % 0.01 ISO 10307-2
Carbon Residue-Micro Method (max) mass % 0.04 ISO 10370
Pour Point (max) °C 30.0 ISO 3016
Water (max) mass % < 0.05 ISO 3733
Ash (max) mass % 0.007 ISO 6245
Vanadium (max) mg/kg < 1.0 IP 501
Sodium (max) mg/kg < 1.0 IP 501
Al + Si (in ash) (max) mg/kg 2.0 IP 501
Phosphorus (in fuel) (max) mg/kg < 0.2 IP 501
Calcium (max) mg/kg < 1.0 IP 501
Zinc (max) mg/kg < 1.0 IP 501
* Tested at 50 °C
† Tested at 750 °C
CHARACTERISTIC UNIT VALUE
Kinematic viscosity* (max) cst 6.0
Flash Point – PMCC (min) g/cm3 100
Sulphur Content (max) % (m/m) 0.10
Water (max) % (V/V) < 0.05
Sulphated Ash % (m/m) < 0.01
Strong Acid Number mg
KOH/g
0.0
Total Sediment Aged (max) % (m/m) 0.05
Carbon Residue (micro) % (m/m) 0.1
Pour Point (max) °C 30.0
Antimony mg/kg < 5.0
Arsenic mg/kg
Cadmium mg/kg
Chromium mg/kg
Cobalt mg/kg
Copper mg/kg
Lead mg/kg
Manganese mg/kg
Nickel mg/kg
Thallium mg/kg
Vanadium mg/kg
Zinc mg/kg < 20
Mercury mg/kg < 5.0
Halogen as Chlorine mg/kg < 100.0
PCBs – Total Top 12 mg/kg < 5.0
* Tested at 100 °C
CHARACTERISTICS UNIT VALUE
Product Name Heavy
Wax
Medium
Wax
Micro
Wax
Oil Content % < 10.0 < 20.0 < 35.0
Density at 25 °C kg/m3 840.0 880.0 820.0
Kinematic Viscosity* cst 8.0 10.0 6.0
Colour Dark
Brown
Light
Brown
Light
Brown
Melting Point °C 90.0 60.0 60.0
Flash Point – PMCC (min) g/cm3 200 < 200.0 100.0
Needle Penetration at 25 °C dmm < 25.0 55.00 150.0
* Tested at 80 °C


* The above product specifications are based on R&D (empirical) testing currently being conducted on a commercial prototype RT700. They are indicative of commercially available products in 2018.
